Serving the world with tube technology from Germany since 1993.
Black Board

All prices in this catalogue are in EUROS per piece (or per meter if wire etc.) if not indicated otherwise and plus shipping.

Visit our pages also SSL encrypted at https://www.die-wuestens.de

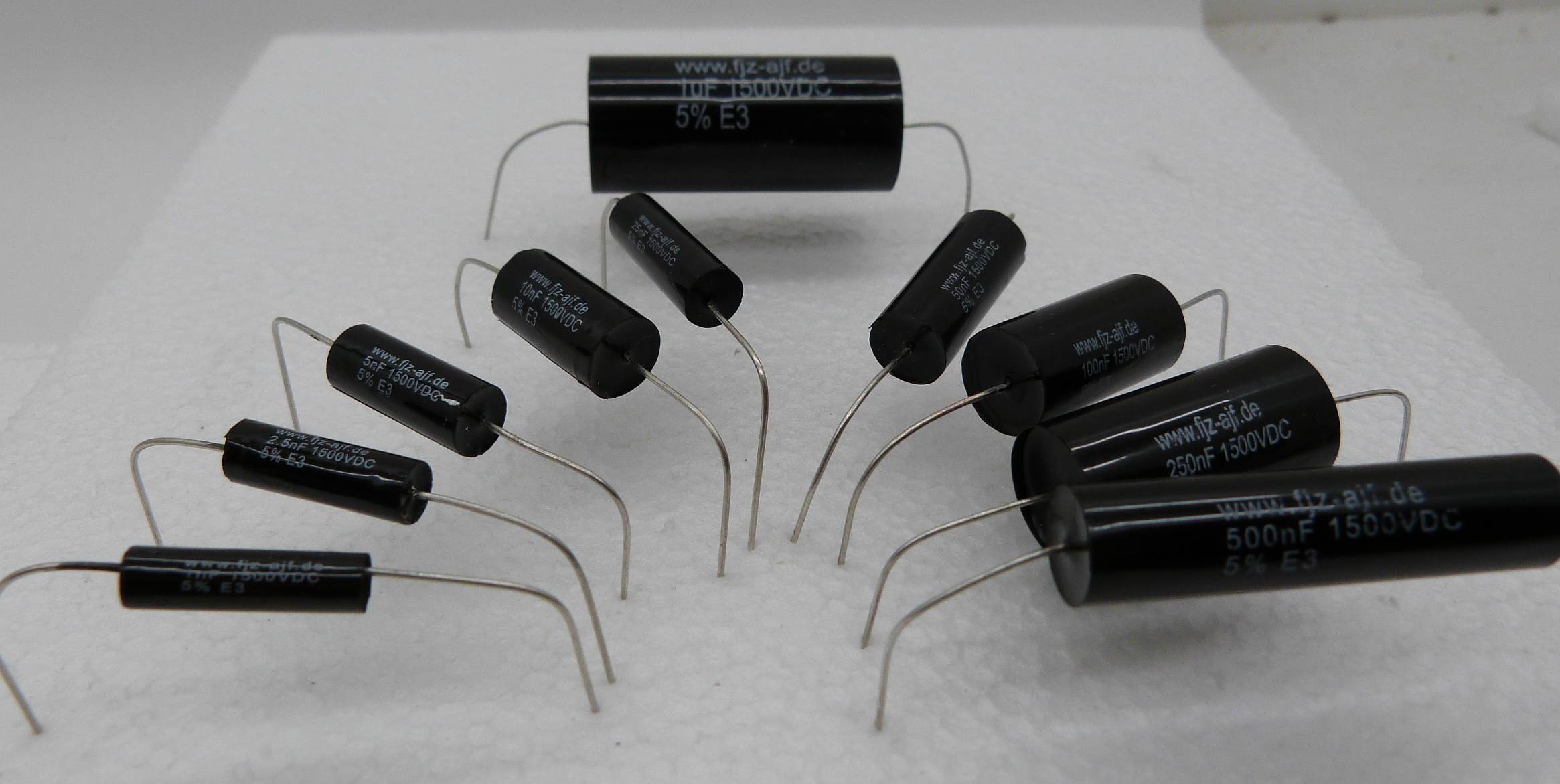

Produktbild Grown range of economy line: Those axial audio grade film caps are rated 1500V.
This is a reasonable expansion of our stock line of HighGrade caps offering good performance at
very reasonable prices.
The range has been extended and refined and we sell them as assortments as well as by piece now.
All details here.

Produktbild Flash news from the Scopeclockland:
First time ever since we started dealing with tubes we are able to offer orange phosphor scope tubes.
Those run excellently with our scopeclock-kit.
All information on our scopeclockpage.
Produktbild Flash news from the Scopeclockland:
PID-Module as add-on to our scopeclock kit: This switches the tube dark whenever there is nobody close enough to look at her.

This simple measure prolonges tube life enormously.
Those run excellently with our scopeclock-kit.
All information on our scopeclockpage.
Mini-Scopetubes for use in Marantz tuners etc.
Brand new Telefunken tubes, really cool looking blue phosphor, a true eyecatcher !!!
All information on our scopeclockpage.
Produktbild
Produktbild
6 G-E12A
NOS Japanese magic eye, "made of pure unobtanium"
This is a very, very rare Japanese magic eye used in the Fisher 100-R tuner, the Sansui Tube Receiver M250etc.
Screen is close to the common 6CD7 but it is - very uniquely - rectangular in shape.
Price is EUR 194,- / EUR 230,86 (incl./excl. VAT.)
Produktbild Sikatrops and similar PIO caps
Newly arrived is a stock of hermetically sealed, NOS German made capacitors of military quality.
In one of the most often needed rating of 50nF (.05uF) at 700V. Ideal coupling
and blocking caps both for repair and new construction.
They have been measured both for isolation and capacitance and are - flawless - !
We can supply them measured with results and also matched.
Made in the 40s and 50s by Siemens, SABA, Hydra, Frako.
available:
Item code KORH503: 50nF 700V EUR 3,28/3,90 (net / incl.VAT)
Cost per piece for specially measured ones: 1,43/ 1,70 EUR (net / incl.VAT)
Cost for selection of pairs: 4,37/ 5,20 EUR (net / incl.VAT)
Those are wonderful coupling caps.

Produktbild There have been quite a few customers asking for an Authenticap with more microfarads so we are
happy to introduce the KTL41 two section four prong twistlock Authenticap with 200+50uF at 500V in a compact
40*66 mm can. This is about the same size like the well known KTL9, just a tiny bit longer.
Another new Authenticap is the KTL40, a multi purpose high capacitance Authenticap and the small and nice
KTL50 which provides heater filtering for example under the crammed full chassis of the Marantz7.
All details including the datasheet are found at the Authenticap-page.
Produktbild Super special offer

We still have stock of NOS military Sylvania 6V6GTY. As stock allows we supply either the brown or black base version, this is our choice
Of course we do not mix those when sending pairs / quads :-)
Brand new ex military 6V6GT US made, wonderful tube for guitar amps.
Super special price : EUR 24,00 excl.- / EUR 28,56 incl. VAT-salestax.
Matching (With detailed protocol )
Pair: EUR 57,- / 67,83 (excl./incl. VAT )
Quad: EUR 120,- / 142,80 (excl. / incl. VAT)
Produktbild
Another special offer
Telefunken EL84 <> diamond bottom, used, measured and analysed, rated
100%, also with detailed test sheets.

Per piece EUR 49,- net / EUR 58,31 incl. VAT (for EU inhabitants)
Per matched pair EUR 105,- net / EUR 124,95 incl. VAT (for EU inhabitants)
Per matched quad EUR 215,- net / EUR 255,85 incl. VAT (for EU inhabitants)
The famous TFK YL1350 powerhorse. NOS, fresh in their boxes, like directly from the factory.
This is an 80W power tube with a transconductance of 22.0000 umhos... Octal base so no problem to use it.

Datasheet
Produktbild We are happy to announce the original Siemens version of the E83CC.
This is a real longlife tube, not a rebranded ECC83.
Guaranteed to be Siemens Munich made they were bought, labelled and boxed by Philips as SQ - Special Quality line.
Brand new, NOS, measured and in original boxes.
We can supply, as stock lasts:
Single tubes: EUR 64,20 / EUR 76,40
Pairs: EUR 144,- / EUR 171,36
And Quads: EUR 288,- / 342,72 (net / VAT incl.)

Original Siemens ECC88/6DJ8 Munich made, NOS,NIB, former military stock. With falcon print which is the German Bundeswehr QM label.
This is an excellent upgrade of russian or chinese ECC88/6DJ8/6N23P/6922 in plenty of audio amplifiers, preamps, CD-players aso.

Single tube EUR31,76 / EUR 37,80 (net / incl. VAT)
Measured, symmetric pair EUR 72,27 / EUR 86,- (net / incl. VAT)
Measured, symmetric Quartett EUR 144,54 / 172,- (net / incl. VAT)

Produktbild Sale of electrolytics, price reduced again !!!

This is a surplus stock of new, unused FTCAp electrolytics which take up to much space in
250uF 500V FTCap, regular: 5,00/ 5,95 EUR (net/ VAT incl.) . Item: KLF25150
reduced as follows:
5 pcs EUR 11,76/14,- (net / incl VAT)
10pcs EUR 18,47/22,- (net / incl.VAT)
25pcs EUR 31,93/38,- (net / incl.VAT)
Box of 80 pcs EUR 92,44/110,- (net / incl.VAT)
This is a real FTCAp electrolytic in it´s well known quality.
For product details see electrolytic´s page.

Produktbild The family of vintage style electrolytics has grown: 2500uF 100V screw mount is an often needed type for use in early transistorised studio equipment.
This one is pretty compact having a 30*45 diameter * lenght can so it also replaces the older 40V version usually of same size. See all details on the electrolytics cataloguepage.
Produktbild Motor running capacitor 48uF 100V used in Klemt Echolette etc. They are almost always to be replaced but hardly found.
Now we are able to supply this one from the shelf, freshly made in Germany. See all details on the electrolytics cataloguepage.


Stock clearance
We do still have a huge stash of 1950-60s tube radio chassis, mainly of german make.
To throw those away would hurt us so we sell them for parts.
Each of those will contain at least
- The power transformer, mostly multi-primary.
- The chassis with tube sockets, small parts, push buttons, IF-Filters, binding posts etc.
- The variable capacitor, usually air tuned, 2-4 sections
This is an excellent point to start if you want to tinker with tubes, no need for
sheet metal work and chassis bending.
The photo shown here shows examples, sorry, we can not pick specific chassis for you.
Price per chassis: EUR 5 / 5,95 ( net / incl. VAT)
Order code: Chassis-1

New item:
Same as above, includes also the output transformer.
Easisest start for a small tube amplifier project.
Price per chassis: EUR 10,- / EUR 11,90 ( net/ incl VAT)
Order code: Chassis-2

PLEASE CONTACT US for shipping cost, those are fairly heavy but we will work out the best
possible shipping rates for you.
Produktbild


Out of the job training of electronics experts we can offer a kit for a double power supply unit with
LM317 regulators. This is a very nice project to show kids and teenagers electronics
The board is really generous in size, easy to solder.
Kit contains of the circuit board and the parts to populate it.
Additionally you will need a suitable transformer, a cable power supply ( like those used for laptop computers
or a suitable wall wart.
This is not a toy, experts must be present when this kit is being assembled.
Take note: all documentation is in German language - though the circuit diagram is quite self explaining.
Price per set: EUR 5,00 / EUR 5,95 ( excl./incl. VAT), Order code: K317 Link to documentation.

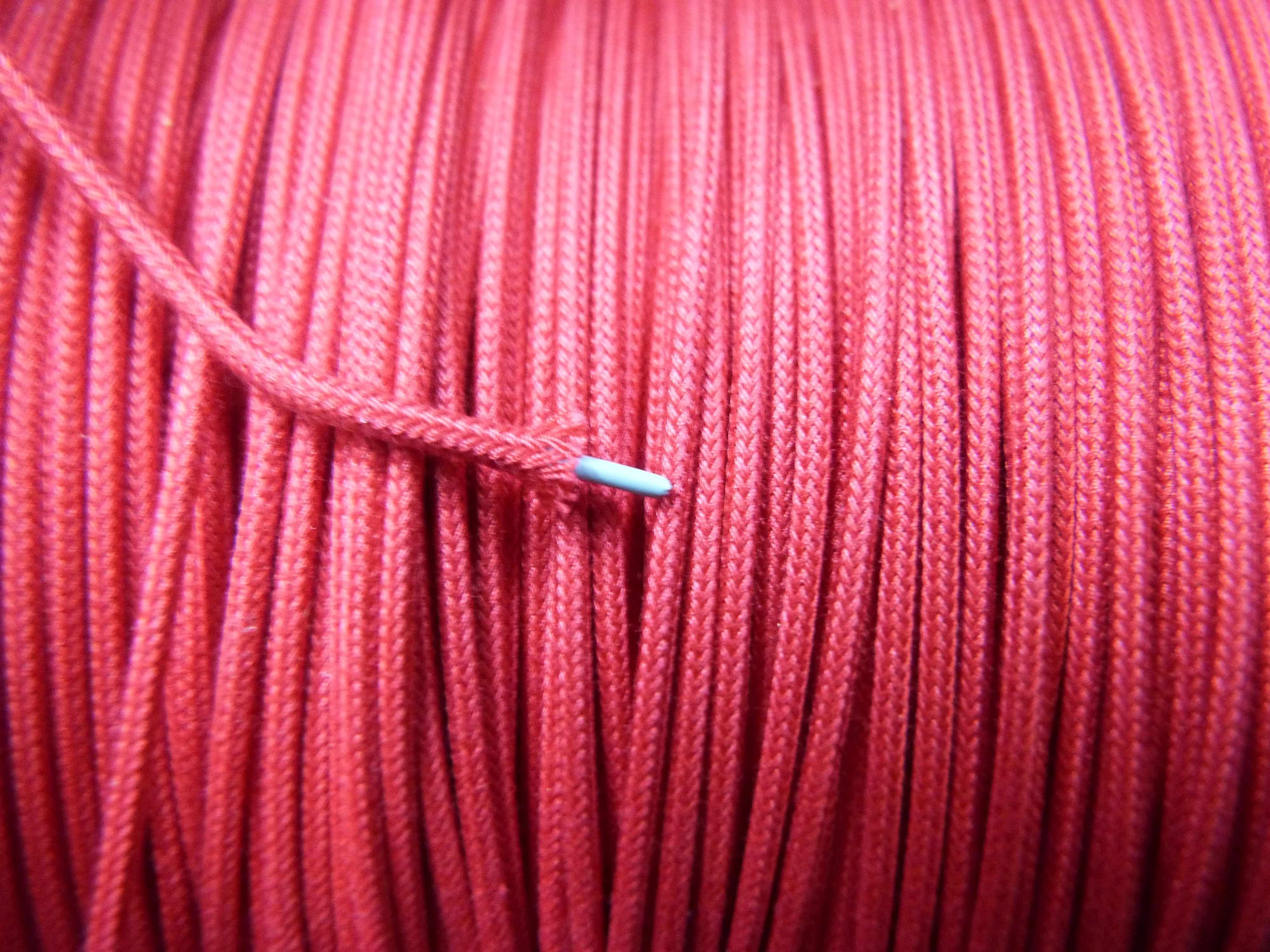

Produktbild "Thick, heavy gauge" HF-Litz stranded wire up to 670*0,07 (670 single isolated strands of 0,07mm diameter) available from stock now, more details on our
Cable page.

Storagetube LN5: wonderful display object. This is a former radar picture storage tube, NOS, high tech of i´s time.
Almost useless, NOS, NIB, for display or possible educational use. Datasheet
Produktbild AF 8499 Seven segment display
This is an intersting display using ordinary miniature light bulbs and a bundle of fibers to
display each segment with four individual dots.
Very interesting for clock builders or collectors.
Digit size: ca. 6 x 12 mm.
Operating voltage ca. 6 V DC (+5...+9 V)

This is a former military sparepart.
as surplus, usually one bulb has burnt out
It´s easy to disassemble the display but replacing the bulb is a bit of tinkering.
Hardcore-solders are free to fit super bright LED....
We always supply six pcs plus one free for spare bulbs.
Price for one sixpack: EUR 12,-/EUR14,28 (excl./incl. MWSt.)
Produktbild NOS Elektrika (FTCap brand) antique film caps.
Beside those already listed ones we can now supply more types of those famous and sought-after capacitors.
Those are wonderful caps for tube circuits.

For details see our High Grade film cap page ( bottom of page)

Produktbild New HighGrade Precision film caps.
Our series of High grade film caps had started at 1000pF in the past. Now, finally, we can also supply them in smaller capacitances: 47pF to 820pF at 1000V and 2% Tolerance as Polypropylene-film caps.
Those complement the existing series so you have all caps available from 47pF to 100uF in precision Polypropylene. German made quality !!

For product details see our High Grade Capacitor page.

Produktbild
Triple variable caps, Item KON0089B


NOS triple air variable caps, 3*330pF, superficial corrosion due to non-perfect storage without
influence to function, turn easily and softly, 1:1, no gear. F
Price each: 8,32/ 9,90 EUR (net / incl.VAT))
Produktbild Real Western Electric NOS Electrolytics

Measured 10uF 400V original Western Electric Electrolytics, unused military stock. Item KONWE10
price each: 20,17/ 24,00 EUR (net / incl.VAT)
Produktbild Leclanché 10uF 100V Film caps
Finest Swiss quality caps. Use for cythodey bypass, filtering, crossovers aso. Plenty in stock so very special price.
Item KONLE106
Price each: 0,75/0,89 EUR (net / incl.VAT)
Want a soda ? Looks like looking at those 2C39BA /7289.
Finest military quality, packed hermetically, mostly in sealed cans.
The 100W triode 7289/3CX100A5/ 2C39BA is used a lot in power PAs
It can also be used in powerfull audio amplifiers. Sure, a bit difficult to cool and one sees no glow but consider: A 100W Triode at this price...

NOS, NIB 7289 = 2C39BA at our special price: EUR 15,92/ EUR18,95 (net / incl. VAT)
Ask for quantity discounts.

Real NOS 1L6 for sale, Made by Sylvania, OEM by Siemens for the Swiss military,
brand new in original boxes. Use in Zenith Transoceanic, Hallicrafters etc. EUR 18,- / 21,42 each ( net/ VAT included)

UL41 found in many AC/DC receivers from Europe, like Philips Philetta, NOS from military stock, EUR 9,90,- / 11,78 each ( net/ VAT included)
New Loetstelle.net-Project: Control a magic eye tuning indicator digitally (project includes controller IC)
New board and parts, More information here: http://www.loetstelle.net/projekte2/tinymagic/tinymagic.php
High quality shrink sleeve and tinned copper wire to realise your point-to-point wired projects. Sold by the meter.
    EUR excl.
MWSt.
EUR incl.
MWSt.
CUSN06 tinned coppe wire, 0,6mm 0,18 0,21
CUSN12 Tinned copper wire 1,2mm, very easy to use, soft and comfortable. 0,50 0,60
SSS3 Shrinksleeve, polyolefine, ratio 1:2, diameter not-shrinked: 3mm 0,30 0,36
SSS5 Shrinksleeve, polyolefine, ratio 1:2, diameter not-shrinked: 5mm 0,33 0,39
SSS8 Shrinksleeve, polyolefine, ratio 1:2, diameter not-shrinked: 8mm 0,40 0,48
SSS10 Shrinksleeve, polyolefine, ratio 1:2, diameter not-shrinked: 10mm 0,50 0,60
SSS15 Shrinksleeve, polyolefine, ratio 1:2, diameter not-shrinked: 15mm 0,60 0,71
SSS20 Shrinksleeve, polyolefine, ratio 1:2, diameter not-shrinked: 20mm 0,80 0,95

Special tube sale


All those tubes are true NOS tubes, many many of them Telefunken and all of them major brands.
Type Brand Comment
      1 pc net 1 pc / VAT incl.   10pcs net 10pcs VAT included   50pcs net 50pcs incl VAT   100 pcs net 100 pcs VAT incl

5678 USA   3,90 4,64   3,00 3,57   2,60 3,09   2,20 2,62
0 B 3 USA   3,20 3,81   2,50 2,98   2,00 2,38   1,50 1,79
0 D 3 RCA   4,40 5,24   4,00 4,76   3,70 4,40   3,50 4,17
1 AD 4 Telefunken   3,00 3,57   2,60 3,09   2,40 2,86   2,20 2,62
12 J 5 GT USA Military half an original US 6SN7GT, those cost real bucks against this bargain offer 4,50 5,36   4,20 5,00   4,00 4,76   2,60 3,09
12 SG 7 USA (RCA)   3,00 3,57   2,20 2,62   1,90 2,26   1,20 1,43
1S5 USA / RCA   2,00 2,38   1,60 1,90   1,30 1,55   0,99 1,18
3 D 6 USA interesting for audio 6,00 7,14   4,90 5,83   4,20 5,00   3,90 4,64
6 AH 6 WA USA   4,50 5,36   4,00 4,76   3,50 4,17   2,20 2,62
75 C 1 Philips Holland   2,23 2,65   1,50 1,79   1,00 1,19   0,55 0,65
CK 1005 USA   4,00 4,76   2,20 2,62   1,50 1,79   0,90 1,07
DF 61 Telefunken   3,00 3,57   2,50 2,98   2,20 2,62   1,80 2,14
DF 91 Telefunken   3,00 3,57   2,50 2,98   2,20 2,62   1,60 1,90
E 180 F Philips Holland interesting for audio 8,00 9,52   7,00 8,33   5,50 6,55   4,90 5,83
E 83 F Philips Holland /Siemens interesting for audio 11,00 13,09   9,50 11,31   8,60 10,23   7,00 8,33
E 92 CC Telefunken interesting for audio 4,00 4,76   3,80 4,52   3,50 4,17   3,20 3,81
EBF 21 div   5,90 7,02   5,20 6,19   4,00 4,76   3,20 3,81
EBF 80 Telefunken really interesting type 3,20 3,81   3,05 3,63   2,50 2,98   2,20 2,62
ECF 801 Siemens   3,20 3,81   3,00 3,57   2,80 3,33   2,40 2,86
ECF 802 AEG / Siemens interesting for audio 2,50 2,98   2,20 2,62   2,00 2,38   1,60 1,90
ECL 80 Telefunken interesting for audio 3,90 4,64   3,20 3,81   3,00 3,57   2,70 3,21
EF 410 Telefunken   5,50 6,55   5,00 5,95   4,40 5,24   2,90 3,45
EL 12 N RFT, Germany interesting for audio 8,50 10,12   8,00 9,52   7,00 8,33   7,00 8,33
EY 500A Ei   5,50 6,55   4,50 5,36   4,00 4,76   2,90 3,45
KF 3 Tungsram directly heated, real old vintage 8,50 10,12   7,00 8,33   6,20 7,38   5,10 6,07
PABC 80 Telefunken interesting for audio, contains one half Tele ECC83 as triode section 1,60 1,90   1,50 1,79   1,40 1,67   1,20 1,43
PC 86 Philips Holland interesting for audio 2,00 2,38   1,90 2,26   1,60 1,90   1,55 1,84
PC 88 Philips Holland interesting for audio 2,00 2,38   1,90 2,26   1,60 1,90   1,55 1,84
PCF 802 AEG / Siemens interesting for audio 2,10 2,50   2,00 2,38   1,80 2,14   1,20 1,43
PCF 803 Telefunken interesting for audio 2,10 2,50   2,00 2,38   1,80 2,14   1,20 1,43
PL 82 Telefunken interesting for audio 4,00 4,76   3,80 4,52   3,50 4,17   3,20 3,81
PY 500A Ei   3,50 4,17   3,00 3,57   2,20 2,62   1,50 1,79
QQE 03/12 Y Philips Holland nice, yet undiscovered longlife audiotube 5,50 6,55   5,00 5,95   4,60 5,47   3,90 4,64
RL12T2 Wehrmacht true Wehrmacht, potential audio type 5,00 5,95   4,20 5,00   3,90 4,64   2,90 3,45
RL2P3 Wehrmacht true Wehrmacht, potential audio type 5,00 5,95   4,20 5,00   3,90 4,64   2,90 3,45
STV 85 / 10 AEG, various 85 V voltage reference 3,90 4,64   2,00 2,38   1,80 2,14   1,00 1,19
UBL3 Siemens, Munich potentially interesting audio power tube 7,30 8,69   7,00 8,33   5,50 6,55   5,20 6,19
UCL 11 Siemens, Munich used in many old radios 13,00 15,47   11,50 13,69   9,90 11,78   8,00 9,52
VY 1 T/V/P/U   14,00 16,66   8,00 9,52   5,50 6,55   3,50 4,17
Produktbild New OPT
Long time expected: a small SE OPT with about 1W power rating to be used with
- Battery tubes: replaces the OPT in almost any battery powered radio (with SE amp)
- Small power applications, if you use high efficiency speakers and like low power amps
- Headphone amps
- or as step.up interstage, ratio 30-50
Primary 8 and 10 kOhms, 15mA max, sec. 4 and 8 ohms.
German made quality.
For details and prices see our OPT page
Produktbild Microwave feedhorn sets
For licensed amateurs who follow all rules and regulations:
Set of two feedhorns with surrounding electronics, we have absolutely no data and
information about those so this is a totally experimental project. Also nice for
teachers to show students the basics of microwave radio. Order code: AF9784, Photo similar, actual products may vary very slightly.
Price for a set of two pcs: EUR 18,- / EUR 21,42 ( excl. / incl. MWSt.)
Produktbild New grill cloths for radios.
Cloth is difficult enough as collections are subject to fashion..
We found a few very nice cloths, see our
sparepartpage for details.
High power Doorknobs rated 1,7nF to 3nF (1700pF to 3000pF) at 40kV and 50kV (!!)
Those are excellent caps for Teslacoils, marxgenerators, high current applications etc.
One customer built a teslacoil and allowed us to publish a video of his tesla coil operating. Here it is !
Those are used, tested caps from disassembled industrial applications. They are oil-resistant so no problem to use them immersed in oil.

Detaileds datasheet: If you want one, mail us and we will gladly send you one.
New arrival: 6B4G Sylvania Power triode, NOS, former mil. stock.
Now you can build real triode amps with real western NOS tubes at a very attractive price.
Ex mil stock, individually boxed, early 1950s production
We supply the twin plate version with two internally paralleled systems having low distortion and high linearity due to.
completely parallel plates.
Tubes are being supplied with curvetraces and detailed testsheet, also paired and as quads if wanted.
New horse in the stable: The "Roetest" from Mr.Weigl.
This is a computerised precision tube analyser and measuring system allowing many different tests, curve tracing and much more.
even THD can be calculated.
We offer this as additional service at a fixed price per tube.
New High Grade film caps in the range between 1 and 10 uF. Fine selection of ratings to cover this range.
Now all ratings between 47pF and 100uF are being covered. Those are excellent caps for crossovers, PSU, bypassing, coupling etc.
Hartpapier Often sought-after: sheet-material bakelite ("Paxolin"), 1,0-10mm thickness. Standard and custom made cuts available.
Also in black lamination as ebonite-replacement.
RF-variable caps from 12 to 240pF at max. 1-3 kV.
The caps can be disassembled and modified pretty easily.
Here you see a PDF about cap-modding from 240pF 1kV to 50pF 4kV
boards and parts for the easy DIY tube projects of www.loetstelle.net are available from stock.


We kept our pages free from programming gimmicks as long as anyhow possible but now we had to include a little Javascript to ensure the display
of the upper navigation frame.
If you don´t see the navigation bar with it´s buttons on top of the page, please activate Javascript in your browser. If you can´t
 do that or if you don´t want to do that click here for the sitemap

  Content of this site is revised and updated continually. Have fun browsing and please report bugs.

External link: A MUST to visit if you love old radios:
Radio catalogue: more than 74.500 radios with   39.000 pictures and 38.000 schematics plus radio   forum.
www.Radiomuseum.org

A short FAQ about our pages and a little history


Wo ist die Deutsche Version ? Hier.
Ou sont les pages Françaises ? Ici.


How can I find out about updates of this pages ?
Simply subscribe to our newsletter. We will then email you when we have new offers for you.


Is it possible to visit you ?
No, we do not have a public store.

Where is What ?
The index framebar on the top of the screen guides you to all pages of our site.
If there is no index framebar on the top, please click here.
For pictures, datasheets and additional info click the "picture" icons or the thumbnails in the catalog lists.

Information about order procedures and contacting us can be found here.
Can I download this pages for offlinebrowsing?
Currently we offer no lists for download.

By the way: Who or what is Ask Jan First ® ??

We are a tube and antique electronic supply part company, founded in 1993 and online since 1998.
In the last years, we have served many thousands of customers worldwide. (From New Zealand to Canada)
Please ask us if you are looking for a tube or parts not listed here, we might well be able to find it for you.


Does Ask Jan First buy tubes?
Yes, we do. But we are no price consultant if you want to sell stuff on auctions not knowing where to start ;-)

I am looking for your postal address.
Here it is.
Frag´Jan Zuerst - Ask Jan First GmbH & Co. KG
Jan Philipp Wüsten
Preiler Ring 10
D- 25774 Lehe
Germany
Telephone: +49-4882-6054551
Telefax: +49-4882-6054552
fjz@die-wuestens.de
alternative email: fjz@gmx.de

Those pages can be accessed at
https://www.die- wuestens.de
http://www.electron-tubes.info
http://www.fragjanzuerst.de
(and some more mirrors)

Index
Linkpage
Sitemap
Katalog
Katalog
